How Does Text-to-Speech Work?

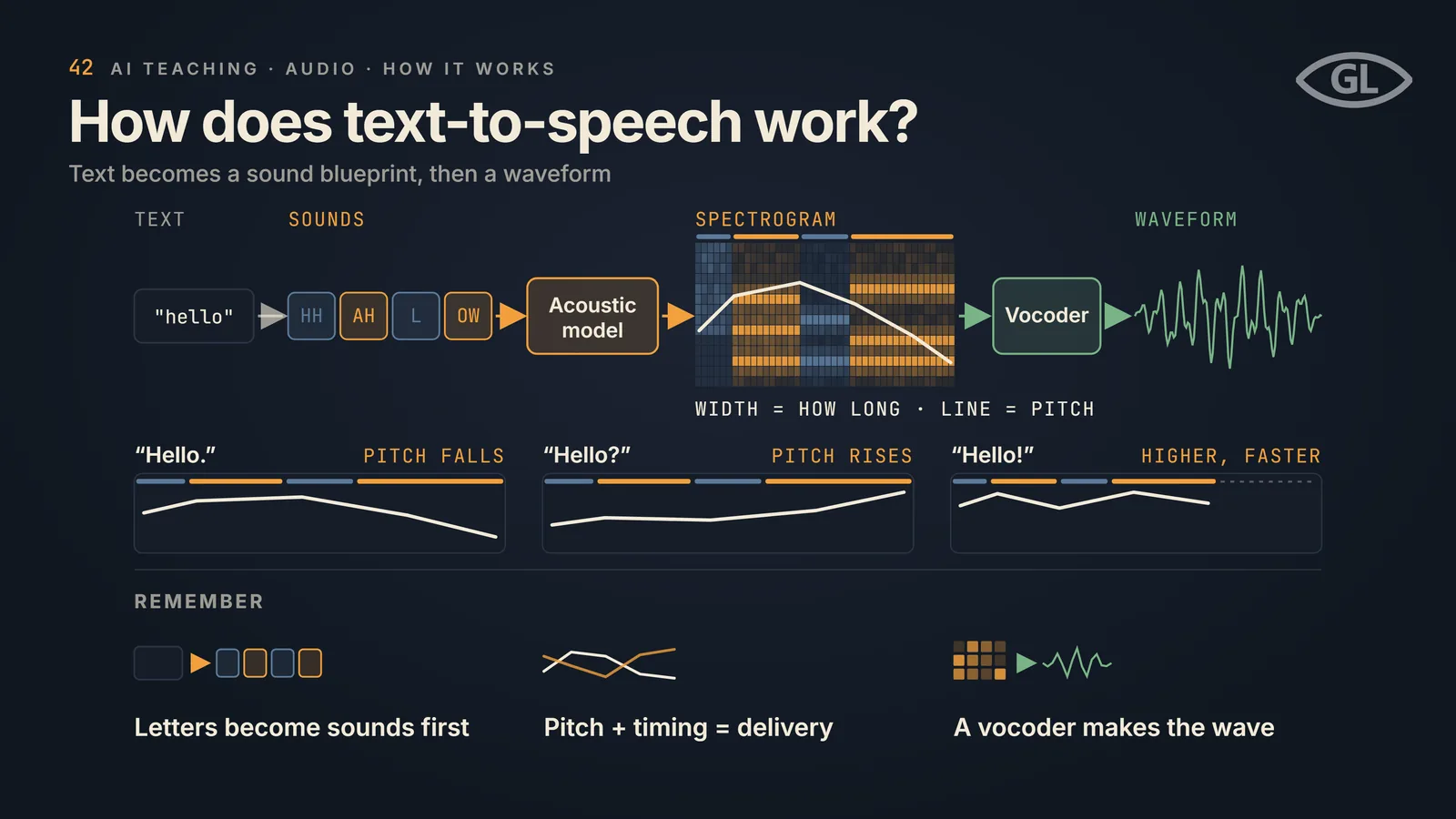

Before any audio exists, the system has to decide what to say out loud. Written text is not a pronunciation guide. "3" has to become "three", "Dr." can be "doctor" or "drive", and English spelling gives no reliable clue to how "through" and "though" sound. Many systems first normalize the text into plain words, then convert the words into phonemes, the distinct sound units of speech. On the one-pager, "hello" becomes four sounds: HH, AH, L, OW.

This front end is a design choice, not a law. FastSpeech 2 takes a phoneme sequence as its input. Tacotron 2 takes character embeddings and learns pronunciation inside the network instead.

The acoustic model says what the sound should look like over time. Its output is a mel spectrogram: time runs left to right, pitch runs bottom to top on a scale spaced the way human hearing is, and brightness is how much energy sits at that pitch at that moment. In FastSpeech 2's setup, each column advances by 256 samples of 22,050 Hz audio, about 12 milliseconds, and holds 80 values.

The picture is readable. A vowel such as AH shows up as bright horizontal bands, because a vowel holds steady for a while. A breathy consonant such as HH shows up as a short smear of energy spread across many pitches. Sounds that last longer take up more columns, which is why the one-pager draws OW wider than L.

Two families of acoustic model exist. Tacotron 2 is a recurrent sequence-to-sequence network that maps character embeddings to mel spectrograms one step after another. FastSpeech 2 is non-autoregressive: it processes the whole phoneme sequence in parallel and outputs the whole spectrogram at once.

Words alone do not fix how a sentence is spoken. FastSpeech 2 adds a variance adaptor that predicts three things: how long each phoneme lasts, and the pitch and energy of the speech. Those predictions are added into the model's hidden sequence before the spectrogram is produced.

During training, the duration targets come from a forced aligner (the Montreal Forced Aligner in the paper), a tool that finds where each phoneme starts and ends in a real recording. The model learns its patterns from many recordings. A habit such as raising pitch at the end of a question is learned from data rather than coded as a rule.

The bottom row of the one-pager illustrates the effect. The same word gets a falling pitch line as a statement, a rising line as a question, and a higher, faster line when excited. The phonemes are identical in all three. Only the pitch curve and the timing change.

A spectrogram is a plan, not audio. A speaker needs a waveform, which is tens of thousands of values per second, and the vocoder generates them from the spectrogram.

WaveNet generates audio one sample at a time, with each sample conditioned on all the previous ones. In the paper, human listeners rated it as significantly more natural than the best parametric and concatenative systems, for both English and Mandarin. Tacotron 2 paired a modified WaveNet with its spectrogram predictor and reported a mean opinion score of 4.53, against 4.58 for professionally recorded speech. Its ablations found that using mel spectrograms as the WaveNet input allowed a significantly simpler WaveNet.

Sample-by-sample generation is slow. HiFi-GAN trains a generative adversarial network to produce the raw waveform directly, and its authors report 22.05 kHz audio generated 167.9 times faster than real time on a single V100 GPU. The design idea they stress is modeling the periodic patterns in audio, since speech consists of sinusoidal signals with various periods.

The four-stage picture is the clearest way to see the mechanism, not the only architecture. The HiFi-GAN authors also show their vocoder inside an end-to-end speech synthesis setup, and some newer speech models predict discrete audio codec tokens instead of a spectrogram, then decode those tokens into a waveform (see what a neural audio codec is). What stays constant is the split between deciding what the sound should be and rendering that decision as audio.
